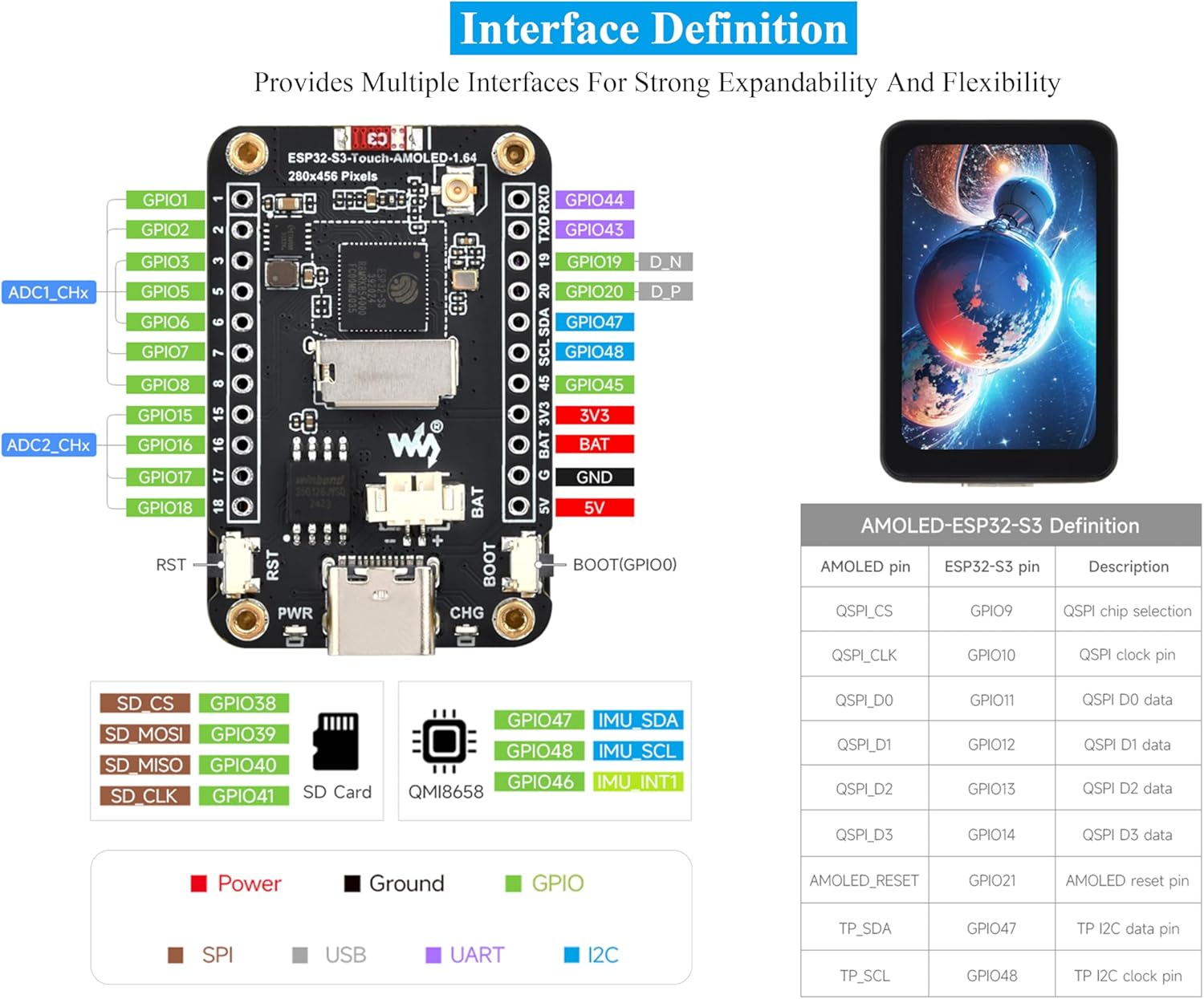

ESP32-S3 with 1.64inch AMOLED Touch Display Development Board, 280 x 456, QSPI Interface, Onboard Accelerometer and Gyroscope Sensor,Type-C, UART, I2C, etc. Ideal for HMI and ESP32-S3 Applications
US$13.82
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by trinityrose.org
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$13.82
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by trinityrose.org
Free 30-day returns Details
Product details
| Management number | 220078381 | Release Date | 2026/05/03 | List Price | US$13.82 | Model Number | 220078381 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Based on ESP32-S3R8 Chip: Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna. The device allows switching to use an external antenna by resoldering an onboard resistor. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM.
- Onboard AMOLED Screen: with 1.64inch AMOLED Touch display, QSPI interface, 280 x 456 resolution, 16.7M color, 178° wide viewing angle, excellent display performance, capable of smoothly running GUI programs such as LVGL. Supports capacitive touch function, controlled via I2C interface.
- AMOLED Screen Features: The AMOLED is recognized as the next-generation display technology, offers superior light-control precision compared to traditional LCD screens. It delivers more vibrant colors, finer details, and more lifelike videos and images.
- IMU Sensor and other Peripherals: Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion gesture detection, step counting, and more. Rich Peripherals Capabilities and Interfaces, it is ideal for the quick development of the HMI and other ESP32-S3 applications.
- Rich Peripherals Capabilities : Onboard RST button, along with programmable BOOT button for customizable functionality and flexible development. Onboard 3.7V MX1.25 Lithium battry recharge/discharge header. Onboard TF card slot, enabling external storage for pictures or files.
